Winch Truck F 890
Carrier vehicle MAN or Mercedes, based on the customer’s needs.
Specifications
Technical Data
Specifications
Transport machine and Winch Truck all-in-one
510 HP all-terrain Winch Truck
Up to 78 tonnes traction directly
Up to 156 tonnes traction with deflection roller

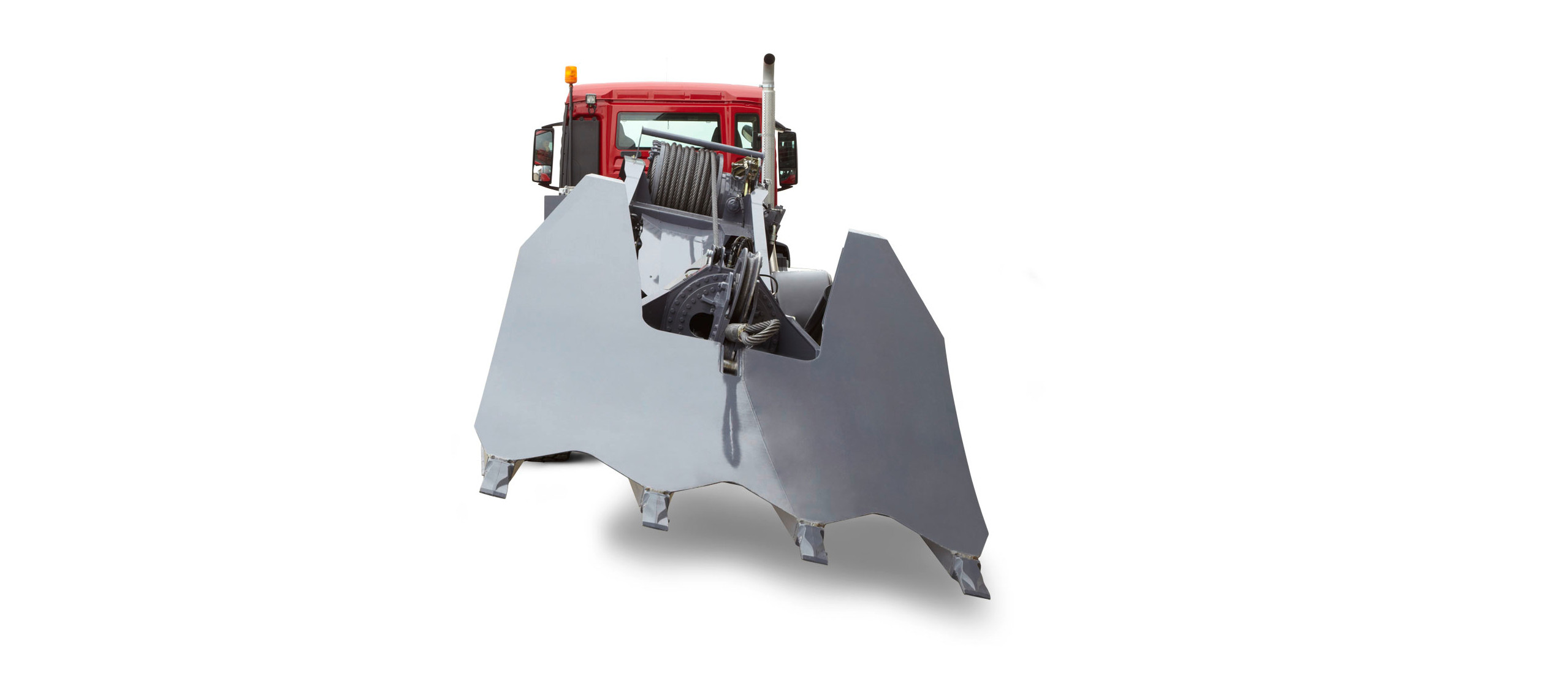

Hydraulically tipping and tilting support shield
Hydraulically tipping winch construction
High performance hydraulics
Compact construction
Optimum weight distribution
No additional front or back overhang

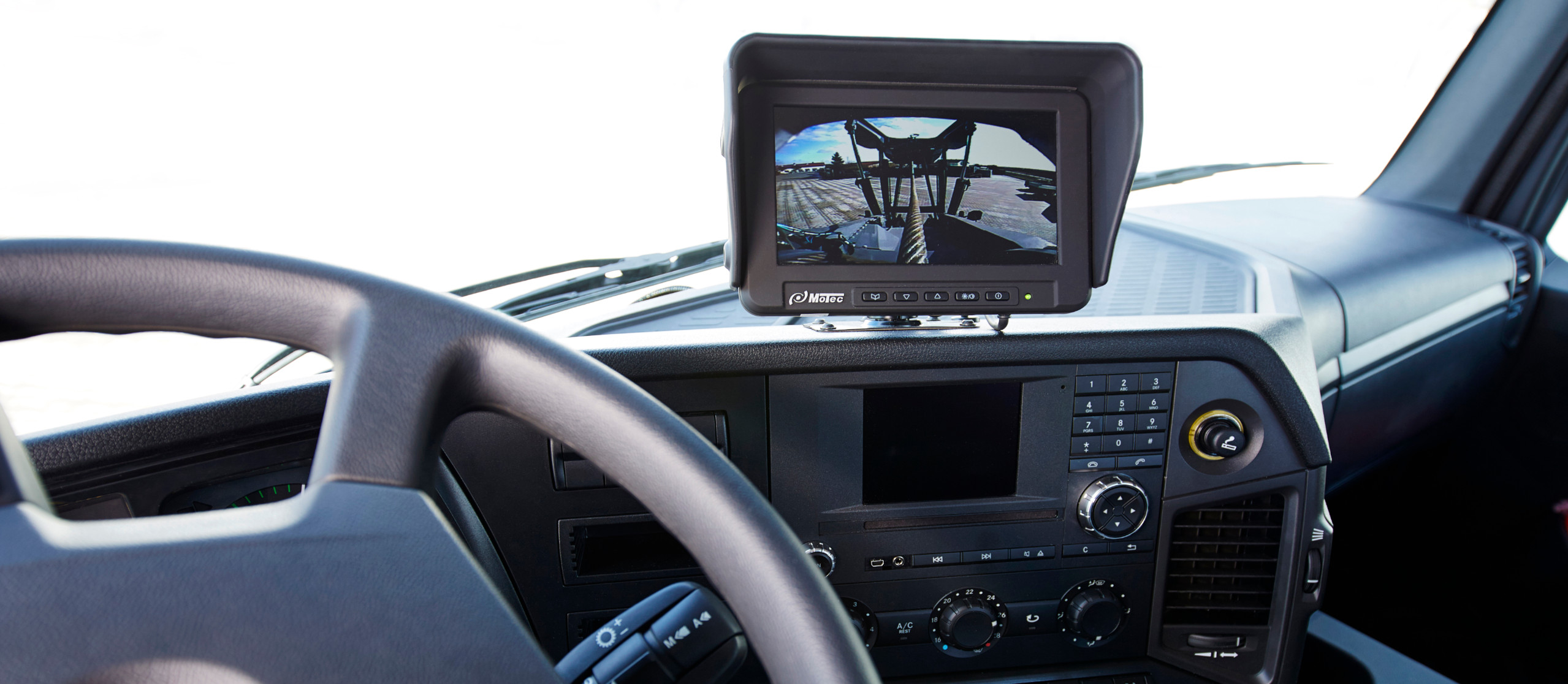

Multifunctional joystick including remote control
Automatic air pressure regulation system
Single-roll cable winding
Technical Data

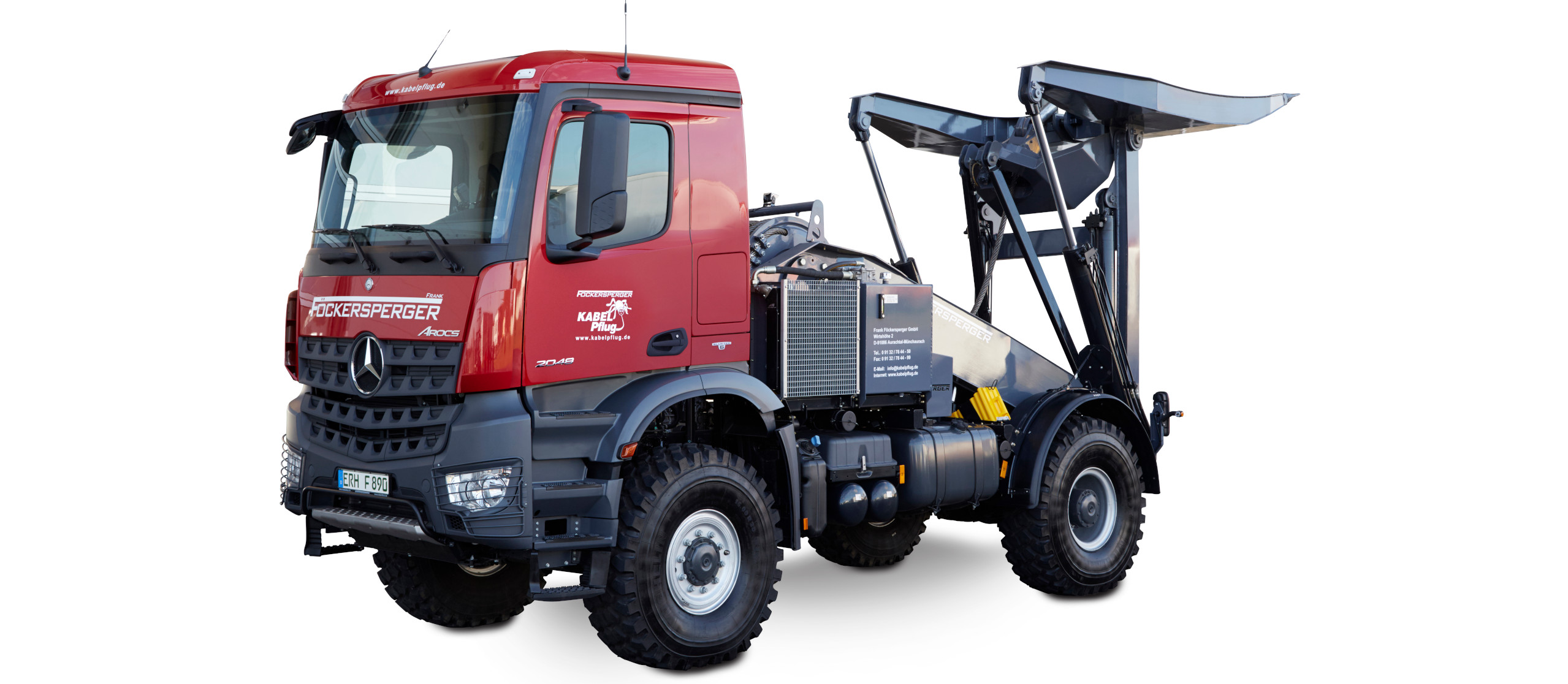

Carrier vehicle Mercedes
MB Arocs 2048 AK 4×4

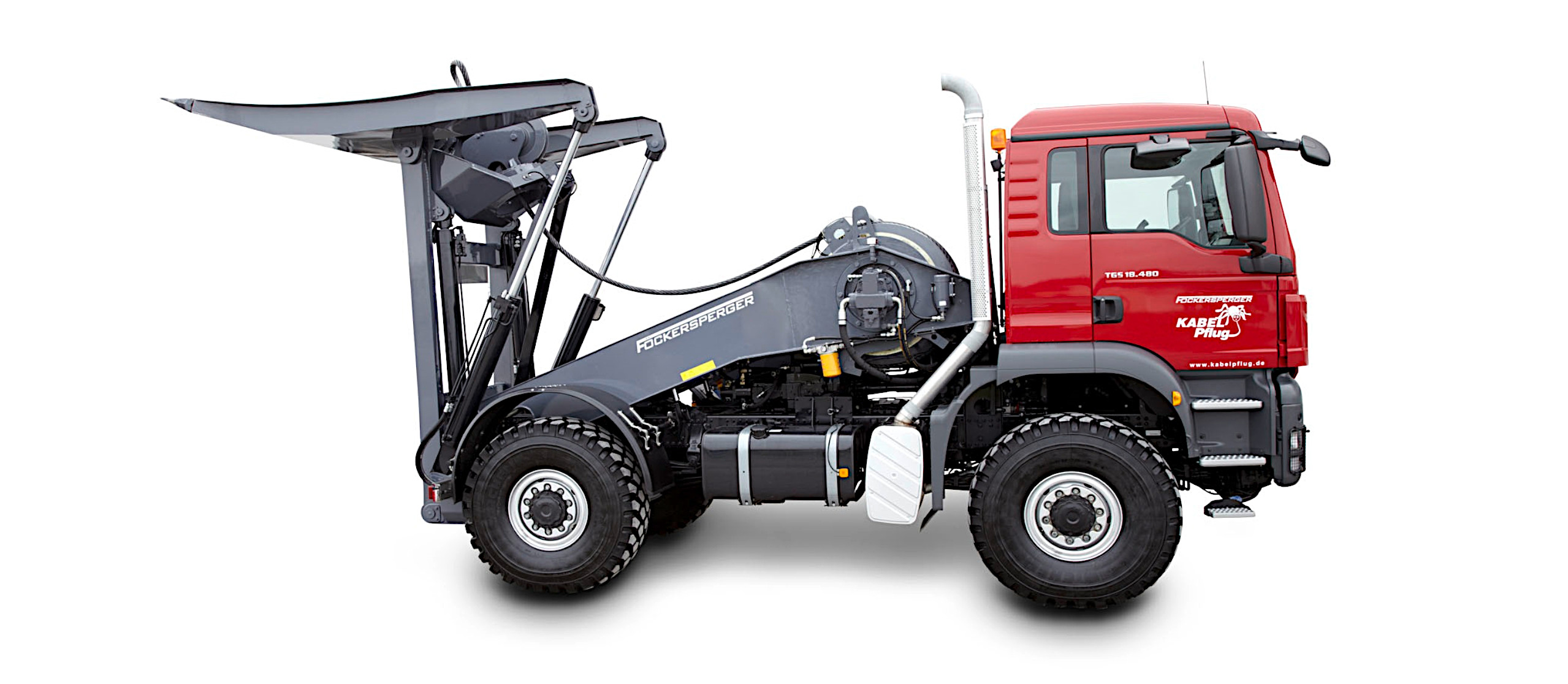

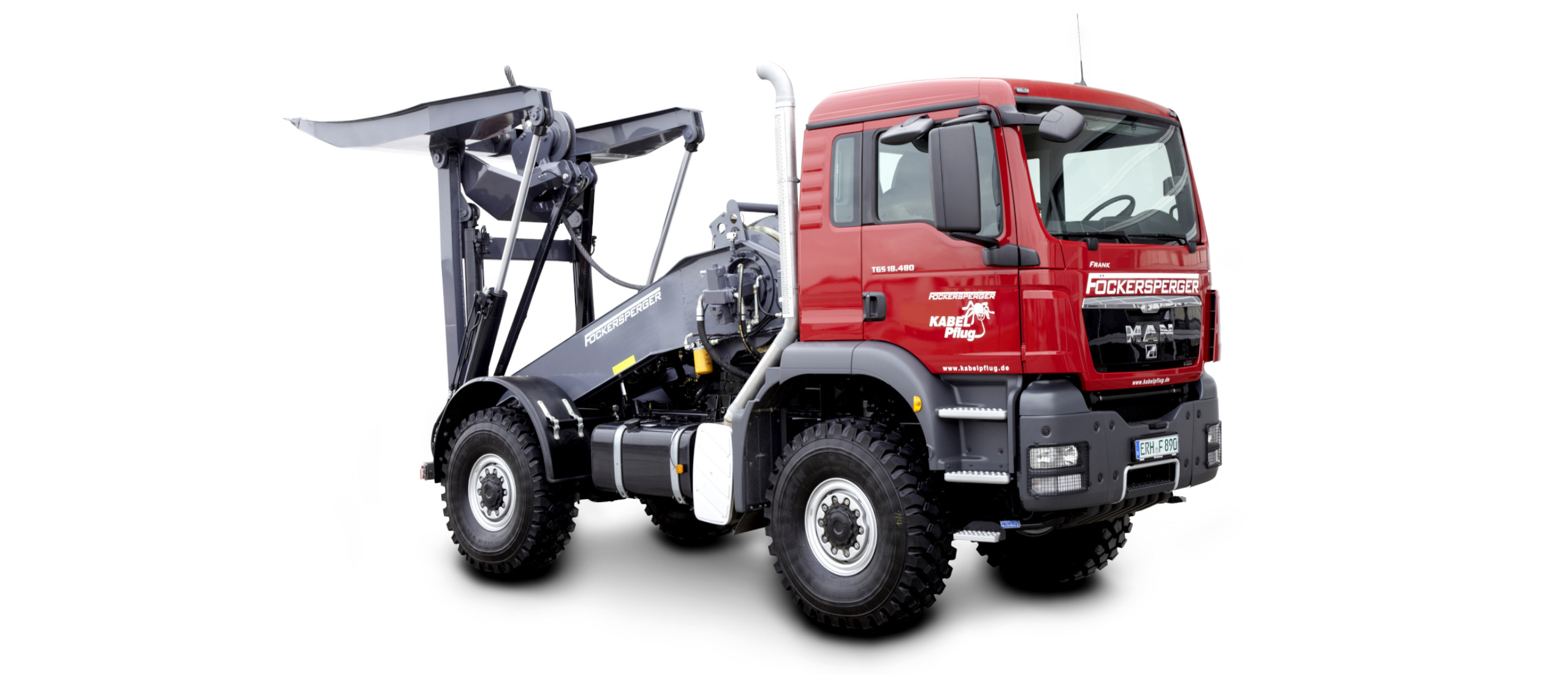

Carrier vehicle MAN
MAN TGS 18.500 4×4
Engine
368 kW / 500 HP EURO 6
Length
MB: 8650 mm / MAN: 8200 mm
Width
2550 mm
Weight
18,000 kg
Max. speed
86 km/h
Tyres
16.00 R 20 XZL
Cround clearance
440 mm
Tractive force – direct
80 t
Tractive force – deflection roller
160 t
Cable diameter
44 mm
Max. cable length
120 m
Drive
hydrostatic
Cable speed
stepless from 0-50 m/min
Winch construction
hydraulically swivelling
Support shield
hydraulically tipping / tilting
Cable guidance
single-drum winding
Weight distribution
50:50 without overhang
